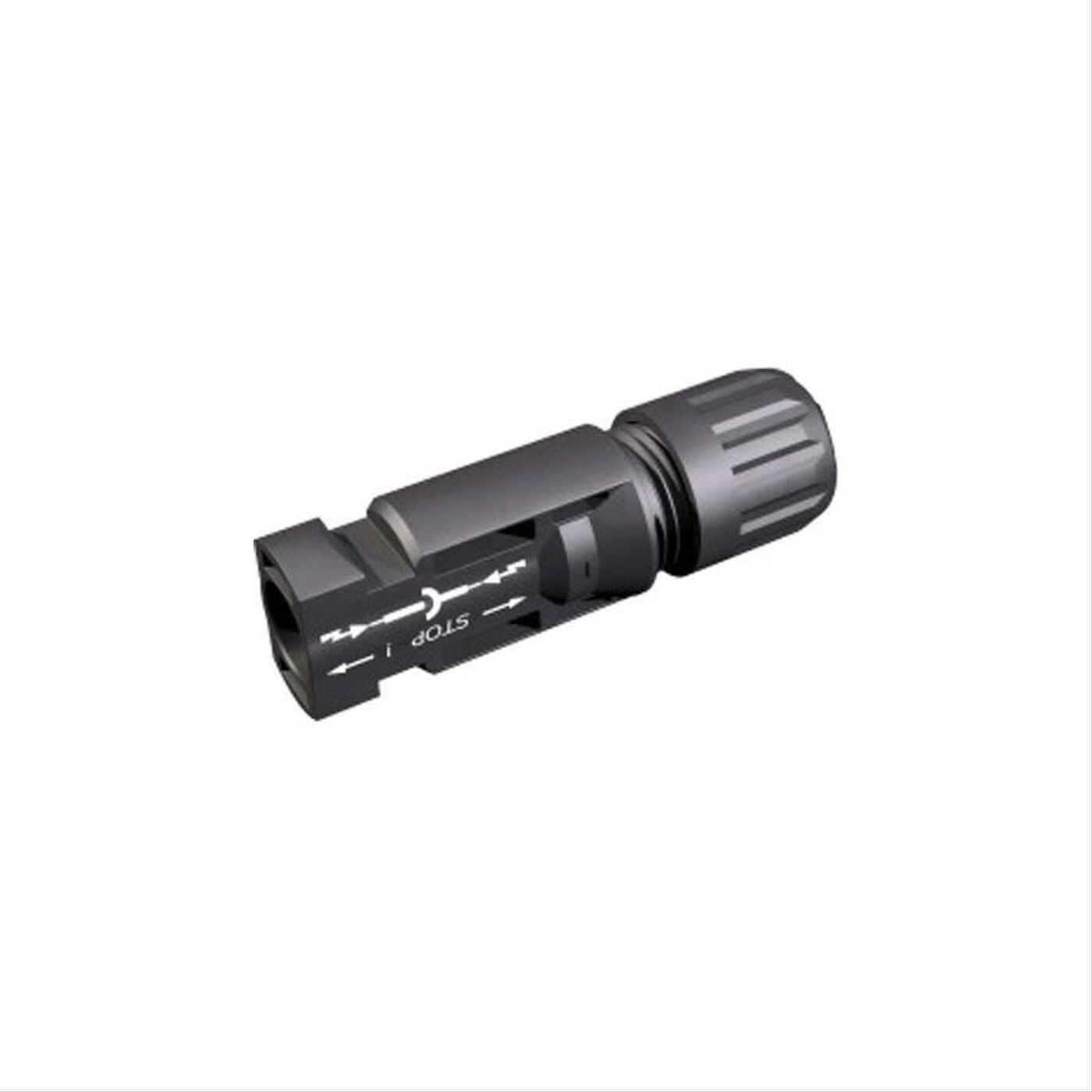

Genuine MC4 Socket Connector (Male)

(0) No Reviews yet
SKU: CON-1201

Connector

MC4 socket connector to suit 4-6mm2 cable - male

Genuine Multi-Contact MC4 plug connector.

Second generation MC4 PV connector from Multi-Contact, which has rapidly become the most accepted connector in the world. The MC4 plug connector is:
  • Designed to accept 4-6mm2 solar cable;
  • Snap-in locking;
  • Proven MC Multilam technology with high long term stability
Ensure your solar installations meet the requirements of Australian Standards AS5033 by only using genuine MC4 socket connectors. AS5033 Clause 4.3.7 requires that connectors are mated only with connectors of the same type from the same manufacturer.

Beware of counterfeit MC4 connectors. Read an article in PV magazine on Weeding out counterfeit connectors.

Should you have any questions, please email us. Alternatively you can login to our web store and purchase the MC4 Socket 4-6MM - FEMALE directly.

Technical dataMC4 Connectors
Connector diameter4 mm
Rated voltage1000 V DC
Rated current30 A
Test Voltage6000 V
Upper limiting temperature105 C
Contact resistance0.5 mΩ
