Genuine MC4 Plug Connector
SKU: # CON-1202
MC4 plug connector to suit 4-6mm2 cable - female

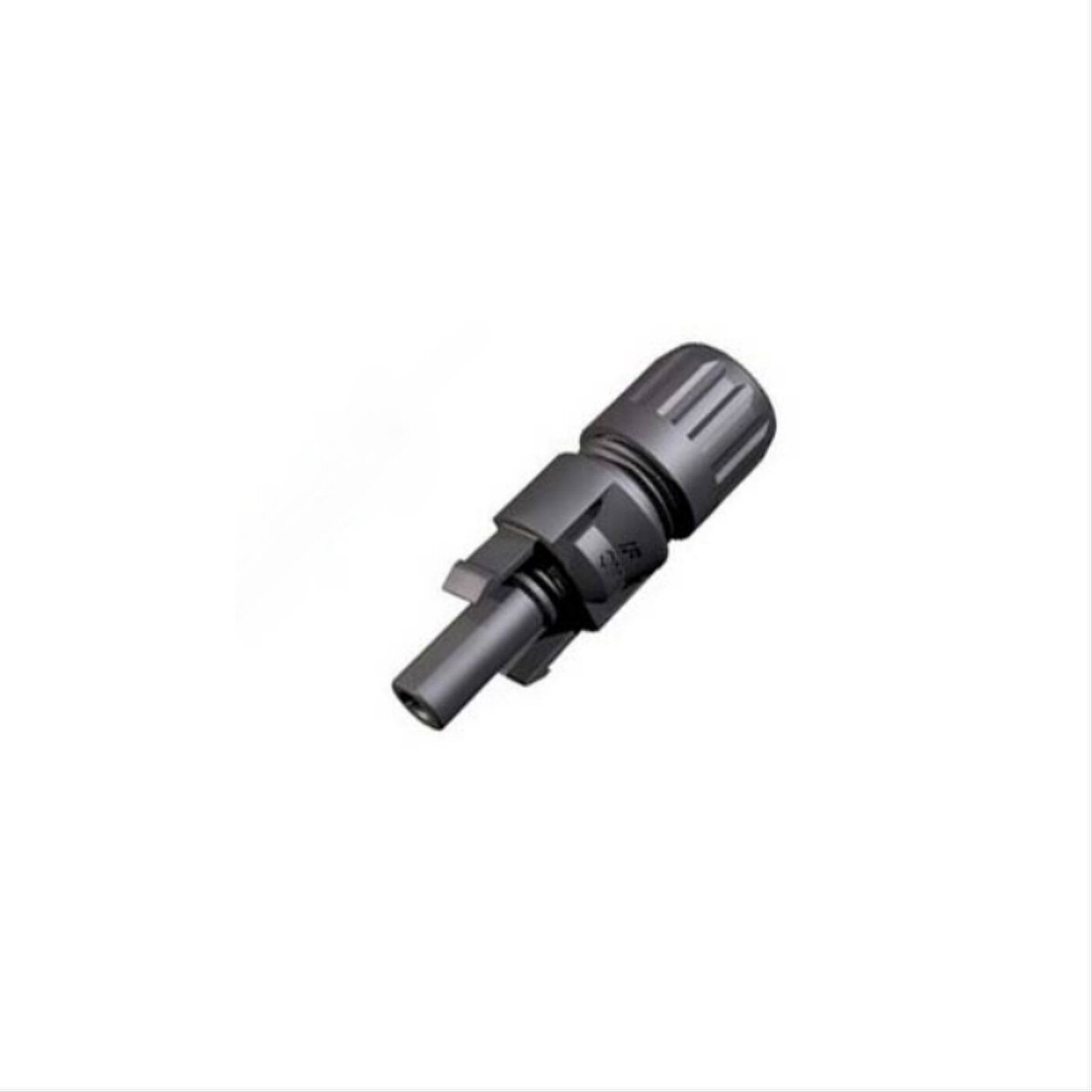

Genuine Multi-Contact MC4 plug connector.
Second generation MC4 PV connector from Multi-Contact, which has rapidly become the most accepted connector in the world. The MC4 plug connector is:
- Designed to accept 4-6mm2 solar cable;
- Snap-in locking;
- Proven MC Multilam technology with high long term stability
Ensure your solar installations meet the requirements of Australian Standards AS5033 by only using genuine MC4 plug connectors. AS5033 Clause 4.3.7 requires that connectors are mated only with connectors of the same type from the same manufacturer.
Beware of counterfeit MC4 connectors. Read an article in PV magazine on Weeding out counterfeit connectors.
Should you have any questions, please email us. Alternatively you can login to our web store and purchase the MC4 PLUG 4-6MM - MALE directly.
|Technical data||MC4 Connectors|
|Connector diameter||4 mm|
|Rated voltage||1000 V DC|
|Rated current||30 A|
|Test Voltage||6000 V|
|Upper limiting temperature||105 C|
|Contact resistance||0.5 mΩ|
